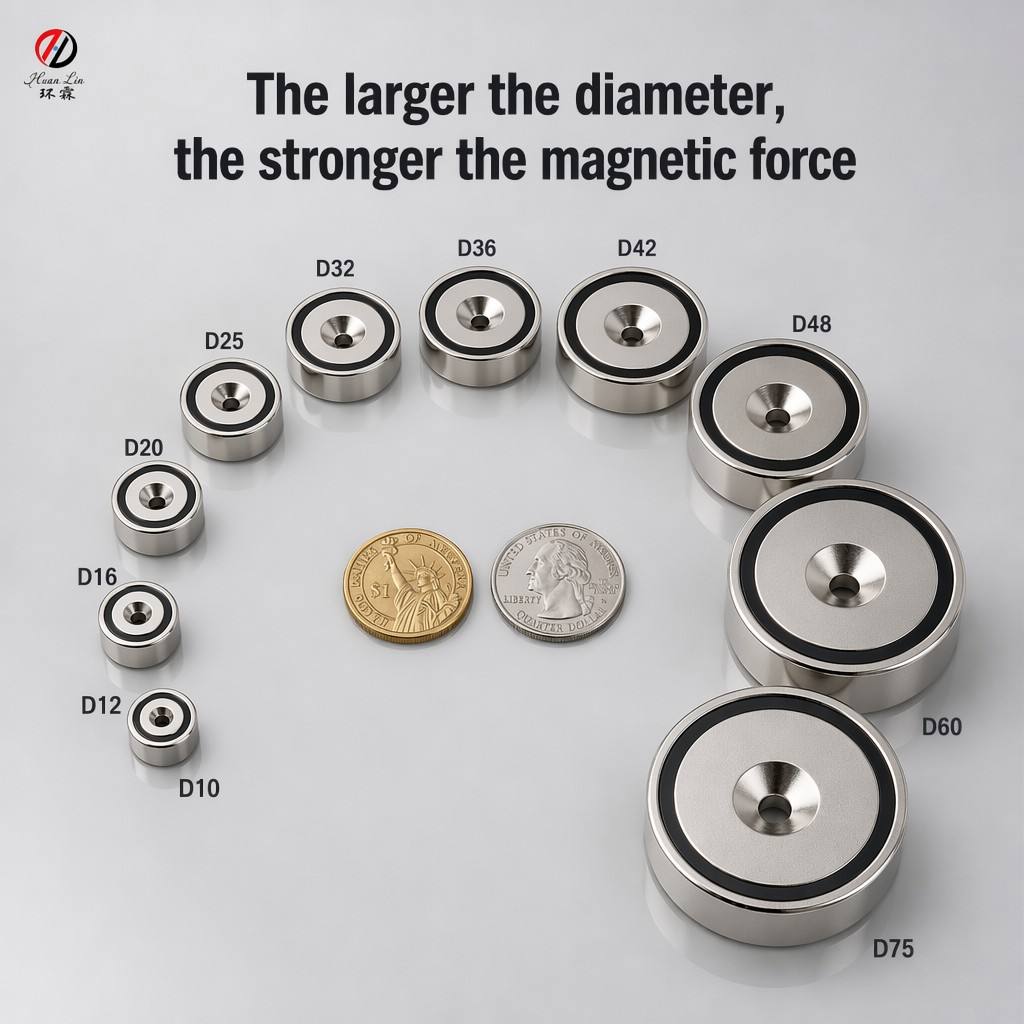

D16 D20 D25 D32 D36 D42 D48 D60 Sintered NdFeB Round Pot Magnet Countersunk Hole Permanent Magnetic Mount for Welding Holding 4

D16 D20 D25 D32 D36 D42 D48 D60 Sintered NdFeB Round Pot Magnet Countersunk Hole Permanent Magnetic Mount for Welding Holding

Neodymium Pot Magnet Round Cup Magnet with Countersunk Hole Industrial Holding Magnetic Base

Counterbore pot magnets are one of the most practical structural magnetic components for modern industrial installation. The integrated sink hole design allows direct screw locking, completely simplifying the traditional magnet installation process that requires adhesive, brackets or welding. The flush mounting structure ensures no protruding parts, keeping equipment surface flat and avoiding mechanical interference during operation.

Built with high-strength sintered NdFeB core and thickened steel cup shell, these pot magnets form a closed magnetic circuit structure. This design concentrates almost all magnetic flux on the working adsorption surface, providing far stronger and more stable holding force than bare magnets of the same volume. The outer steel shell also effectively protects the internal brittle magnet core from cracking, collision and abrasion, greatly improving overall durability.

All counterbore holes are precisely machined to match standard flat-head screws, ensuring smooth assembly and tight locking. Even under long-term high-frequency vibration, reciprocating movement and heavy load adsorption, the magnets maintain stable positioning without offset or falling off. Standard nickel plating provides excellent anti-rust, anti-oxidation and wear resistance for long-term workshop and production line use. Optional epoxy waterproof coating and high-temperature resistant grades adapt to humid, outdoor and high-heat industrial working conditions.

We provide complete magnet grade options including conventional N35-N52 room-temperature grades and SH/EH high-temperature resistant grades. A full range of standard specifications are in stock for fast delivery. Customized overall size, sink hole aperture, thickness and surface treatment are all available to meet personalized mechanical design requirements.

Widely applied in CNC fixture positioning, automation equipment base fixing, workshop tool holders, mechanical testing instruments, advertising bracket installation, mold auxiliary positioning and industrial assembly scenarios. Both small sample trial orders and large-batch bulk wholesale are supported with strict quality inspection to ensure stable batch consistency.

Inquiry

Write a Review

Reliable Strength, Durable Design

This heavy-duty pot magnet features a robust steel channel housing that directs magnetic force for up to three times stronger pull, ensuring secure and precise mounting in demanding industrial environments. Its shock-resistant design minimizes damage and extends durability, while corrosion-resistant coatings maintain reliable performance even outdoors or under continuous vibration. Ideal for fixtures, tooling, and heavy hardware, this magnet provides long-lasting stability and easy installation with multiple mounting options to fit varied applications.

Powerful, Durable, Secure, Industrial

This heavy-duty pot magnet features a high-grade neodymium core encased in a robust steel channel housing that directs magnetic force efficiently to the working surface, tripling pull strength while preventing chipping and cracking. Its corrosion-resistant coatings and shock-resistant construction ensure reliable performance in harsh industrial environments, including exposure to vibration and outdoor conditions. Designed for versatile mounting with options like countersunk holes and threaded studs, it delivers stable, reusable, and maintenance-free holding power ideal for fixtures, tooling, and assembly applications.

Powerful Durable Industrial Holding

This heavy-duty rectangular pot magnet features a high-grade neodymium core encased in a durable steel channel housing that directs magnetic force efficiently to the contact surface, significantly enhancing pull strength. Its robust construction minimizes chipping and cracking, ensuring reliable performance in industrial applications such as mounting, clamping, and positioning under vibration or outdoor conditions. Available with multiple coating options and mounting configurations, this magnet offers long-lasting, corrosion-resistant holding power ideal for metal fixtures, workshop tools, and manufacturing setups.

◎ Power

◎ Durability

◎ Versatility

Powerful, Durable, Secure, Versatile

Crafted with a robust steel channel housing, this heavy-duty rectangular pot magnet ensures maximum durability and reliable holding power in demanding industrial environments. Its strong magnetic force provides secure mounting and stable fixture support, making it ideal for heavy-duty applications. Designed for longevity and efficiency, the magnet offers corrosion resistance and easy installation, enhancing both performance and convenience.

Material introduction

This heavy-duty rectangular pot magnet features a powerful neodymium (NdFeB) core housed within a robust steel channel that enhances magnetic strength and durability. The steel housing effectively channels the magnetic force to the target surface while protecting against chipping and cracking, making it ideal for industrial applications. Available with various coatings such as nickel, zinc, epoxy, or rubber, the magnet offers excellent corrosion resistance and long-lasting performance even in harsh or outdoor environments.

◎ Heavy Duty Rectangular Pot Magnet with Steel Channel Housing

◎ Neodymium Core

◎ Steel Channel Housing

rectangular pot magnet with steel channel

FAQ

What types of surfaces can the Heavy Duty Rectangular Pot Magnet be mounted on?

This pot magnet is designed to be mounted on ferromagnetic surfaces such as steel or iron. Its steel channel housing enhances stability and ensures a strong, secure hold on flat metal surfaces commonly found in industrial environments.

Can this magnet be used for holding heavy tools or fixtures in a workshop?

Yes, the Heavy Duty Rectangular Pot Magnet is ideal for holding heavy tools, fixtures, or equipment in workshops. Its strong magnetic force provides reliable mounting, which helps keep tools securely in place during use or storage.

Is this magnet suitable for outdoor industrial applications?

The magnet’s robust steel housing offers some protection against mechanical damage, but its suitability for outdoor use depends on environmental conditions. For exposure to moisture or corrosive elements, additional protective coatings or measures may be necessary to prevent rust and maintain magnetic strength.

How does the steel channel housing improve the magnet’s performance?

The steel channel housing concentrates the magnetic field on the mounting surface, increasing the holding power. It also protects the magnet from physical damage, making it more durable in industrial applications involving frequent contact or impact.

Can this pot magnet be used as a mounting base for fixtures in automated assembly lines?

Absolutely. Its strong hold and durability make it well suited as a mounting base for fixtures and tooling in automated assembly lines. It can securely hold components in place while allowing for easy repositioning if needed.

What precautions should be taken when using this heavy-duty pot magnet for industrial holding?

Users should ensure that the mounting surface is clean and flat for optimal contact. Avoid placing sensitive electronic equipment near the magnet to prevent interference. Additionally, handle the magnet carefully to avoid pinch injuries due to its strong attraction force.
