How To Choose The Right Neodymium Magnets For Your Project

Choosing the Perfect Neodymium Magnets: A Concise Guide
Selecting the right neodymium magnet is crucial for the success of any project, from building efficient motors and DIY gadgets to industrial holding applications. With various sizes, strengths, and coatings available, the process can seem complex. This guide breaks down the essential factors to help you make an informed choice tailored to your specific needs.

1. Understanding Key Magnet Parameters
Neodymium (NdFeB) magnets are the strongest permanent magnets available, offering exceptional power in compact sizes. Selecting the right one starts with understanding a few key parameters:
-- Grade: Denoted by letters and numbers (e.g., N42, N52), the grade indicates the magnet’s maximum energy product (MGOe), which correlates to its strength. A higher number means a stronger magnet. For instance, an N52 is stronger than an N42 of the same size.
-- Size & Shape: Physical dimensions (diameter, thickness, length) directly influence pull force. Shape (disc, block, ring, cylinder) affects magnetic field distribution and mounting options.
-- Coating: Neodymium magnets are prone to corrosion and require protective coatings. Common options include Nickel (Ni-Cu-Ni) for general use, epoxy for enhanced moisture resistance, and zinc for cost-effective protection.
-- Temperature Resistance: Standard grades lose magnetic strength at high temperatures. If your application involves heat, you need grades with high coercivity (resistance to demagnetization), often marked with suffixes like ‘H’ (e.g., 42H).

2. How to Select the Right Magnet: A Step-by-Step Approach
Follow this process to match a magnet to your project requirements.

Step 1: Define Your Primary Requirement
Identify the magnet's core function. Is it for:
-- Holding or Lifting? Determine the required pull force.
-- Motion or Energy Conversion? (e.g., in a motor). Focus on magnetic flux and thermal stability.
-- Sensing or Positioning? Precision in field strength and consistency is key.

Step 2: Determine the Necessary Strength and Size
-- For holding applications, calculate the required holding force. Remember to include a safety factor (e.g., 2x the weight). Use online pull-force calculators or manufacturer charts that correlate magnet size, grade, and pull force.
-- For motor or generator design, the grade and size will be determined by the desired torque, speed, and efficiency. Higher grades (N52) allow for more compact designs, but medium grades (N42) often offer a better cost-performance balance.
-- Trade-off: A larger, lower-grade magnet can sometimes achieve similar force to a smaller, higher-grade one. Consider your space constraints and budget.

Step 3: Choose the Appropriate Shape
-- Disc/Cylinder Magnets: Common for general holding, sensors, and simple couplings. Offer a concentrated magnetic field.
-- Block Magnets: Ideal for holding applications where flat, broad surfaces are in contact.

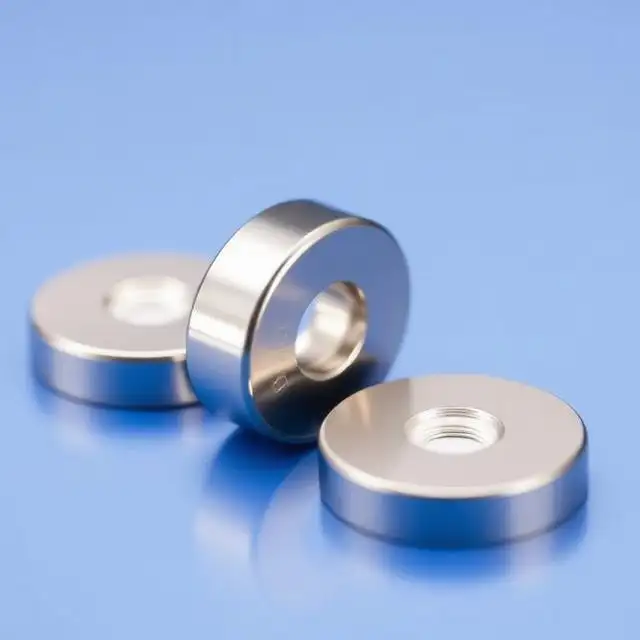

-- Ring Magnets: Used when a central hole is needed for shafts, bolts, or sensors.
-- Arc/Sector Magnets: Specifically designed for motors and generators to fit around rotors.

Step 4: Select the Correct Coating and Grade for the Environment
-- Indoor, Dry Environments: Standard nickel plating is usually sufficient.
-- Damp, Humid, or Outdoor Environments: Choose epoxy-coated or heavily nickel-plated magnets for superior corrosion resistance.
-- High-Temperature Environments (>80°C/176°F): You must select a temperature-rated grade (e.g., N42H, N42SH). The maximum operating temperature is a critical spec—exceeding it will cause permanent magnetic loss.

Step 5: Balance Performance with Cost
-- N42 vs. N52: While N52 is stronger, it is also more expensive and can be more brittle. N42 often provides the best value for many applications.
-- Custom vs. Standard: Standard sizes are cost-effective and readily available. Consider custom shapes only if your design has strict spatial or performance constraints that standard magnets cannot meet.
-- Quantity: Unit price decreases significantly with larger orders.

3. Essential Safety Tips for Handling
The immense strength of neodymium magnets demands caution:
-- Wear Safety Gear: Always use safety glasses and gloves. Magnets can shatter upon violent collision, and pinching is a serious risk.
-- Handle with Space: Keep magnets apart and handle them one at a time to prevent them from snapping together, which can cause injuries or damage.
-- Keep Away from Electronics and Medical Devices: Strong magnetic fields can damage phones, credit cards, hard drives, and are hazardous to individuals with pacemakers or other implants.
-- Use Non-Magnetic Tools: Use plastic, wood, or brass tools for positioning to avoid sudden attraction.

Conclusion
Choosing the ideal neodymium magnet involves a careful balance of strength (grade), size, shape, coating, and environmental factors against your project's specific needs and budget. By systematically defining your requirements and understanding these core parameters, you can select a magnet that ensures optimal performance, durability, and safety. For complex applications, consulting with an experienced magnet supplier can provide valuable guidance and help you unlock the full potential of these powerful components for your project.
